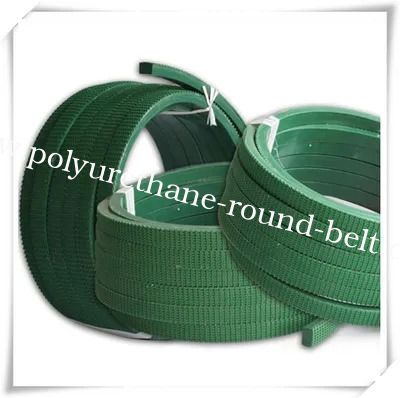

Non-Reinforced Polyurethane V Belt with Strong Tensile Strength and PVC Grip Top Surface for Superior Grip
| 최소 주문 수량 | 1,000 |
|---|---|
| 가격 | 1.8 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 재료 | 푸 | 내부 재료 | 푸 |
|---|---|---|---|
| 경도 | 85는 ~90 버팀목 A를 지지합니다 | 프로파일형 | vee |
| 프로필 크기 | A/13, B/17, C/22 | 보강 | 없음 |
| 색상 | 녹색이고 빨갛습니다 | 듀로미터 | 80a, 90a |
| 상단 표면 | PVC | 패키지 길이 | 30 미터 /롤 |
| 너비 a | 13mm | 높이 a | 8mm |
| 폭b | 17mm | 높이 b | 11mm |
| 너비 c | 22mm | ||
| 강조하다 | Non-Reinforced Polyurethane V Belt,Strong Tensile Strength Super Grip Belt,PVC Grip Top Surface PU V Belt |
||
제품 설명
Non-Reinforced Super Grip Belt
Conveyor PU V Belt with Super Grip / Transmission Polyurethane V Belt Top Green PVC
Manufacturer Overview
Wuxi Jiunai Polyurethane Products Co., Ltd is located in Wuxi City Shitang Bay Mountain Luoshe Town Industrial Park, near to 312 National Road. The company has international-leading polyurethane production lines and advanced testing equipment, maintaining a leading position in production scale, process technology, and technical strength.
Super Grip Belt Features
- Profile shape: Vee
- Profile size: A/13, B/17, C/22
- Reinforcement: None
- Color: Green, Red
- Compliancy: RoHS
- Durometer: 80A, 90A
- Material: Polyurethane, PVC Top Surface
- Special Feature: PVC Grip Top Surface
- Package Length: 30meter/roll
- Easily welded endless vee belt
Vee-Belt Applications
Widely used in conveying slippery environments and up steep inclines in industrial applications.
Technical Specifications
| Specification | X(mm) | H(mm) | Z(mm) | M/rolls | Reinforced | Arabesquitic |
|---|---|---|---|---|---|---|
| A | 13 | 8 | 3.5 | 30 | · | · |
| B | 17 | 11 | 3.5 | 30 | · | · |
| C | 22 | 14 | 3.5 | 30 | · | · |
| D | 32 | 19 | 3.5 | 30 | · | · |
| M | 8 | 4 | 50 | |||
| Z | 10 | 5 | 3.5 | 50 | · | · |
Product Description
Super grip belts are ideally suited for applications requiring conveying in slippery environments, up steep inclines, or moving easily damaged products. These belts combine the elasticity of an unreinforced V-belt with a super grip surface. The PU Vee Super Grip with top PVC surface is soft and tacky enough to protect delicate cargo while providing excellent grip.
