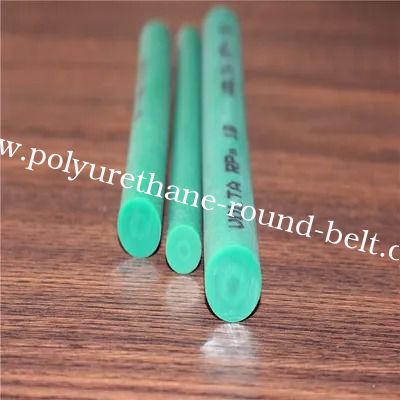

Polyurethane Round Belt PU Round Belt with Diameter 2-20mm Shore A 90 and Acid Alkali Resistance for Drive Transmission
| 최소 주문 수량 | 1,000 |
|---|---|
| 가격 | 0.5 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | dia 2mm-20mm | 유형 | PU 둥근 벨트 |
|---|---|---|---|
| 재료 | 푸 | 내부 재료 | 푸 |
| 표면 | 부드럽거나 거친 | 인장 강도 | 55N/mm2 |
| 직경 범위 | 2 ~ 20 mm | 경도 | 해안 (a) 85 ~ 90 |
| 스트레칭비 | 1.5-3% | 롤 길이 | 30m ~ 400m |
| 최소 반경 | 20mm ~ 160mm | 최대 팽창력 | 0.3kg ~ 31.3kg |
| 오일 저항 | 예 | 산성 저항 | 예 |
| 내열 | 예 | ||
| 강조하다 | Diameter 2-20mm Polyurethane Round Belt,Shore A 90 PU Round Belt,Acid Alkali Resistant Polyurethane V Belt |
||
제품 설명
Driving Polyurethane Round Belt Supplier
We provide a comprehensive range of Polyester and Polyurethane Round belts designed for industrial transmission applications. Our belts are engineered for transporting various products across multiple industries, from transport and conveyor systems to glass and tile handling.
Product Features
- Outstanding abrasion resistance
- High tensile and tear strength
- Resistance to oils, fuels, and oxygen
- Excellent weatherability and high impact resistance
- Low compression set
- Available with smooth or rough surfaces
- Reinforced with polyester, nylon, or fibers
- Can be welded into O-rings
Available Accessories
We supply complete connecting tools and accessories including clamps, electric irons, and knives. Connection methods include hotpress welding and overlap welding.
Applications
- Newspaper conveying systems
- Packing machines
- Ceramic and stoneware processing plants
- Floor and roof tiles conveying
- Wood working machinery
- Textile machines
- Paper industry machines
- Food grading and processing machines
Technical Specifications
| Items NO. Φ | Least Radius of Gyration | Stretching Rate | Maximum Tensile Rate | Hardness | Length of Roll | |
|---|---|---|---|---|---|---|
| DIA(mm) | In | mm | % | Kg | Lbs | Shore(A) | Roll(m) |
| 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
| 2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
| 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2 | 4.3 | 90 | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7 | 90 | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9 | 90 | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5 | 11 | 90 | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15 | 90 | 50 |
| 10mm | 3.94 | 100 | 1.5-3% | 7.7 | 17 | 90 | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27 | 90 | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39 | 90 | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56 | 90 | 30 |
| 20mm | 6.3 | 160 | 1.5-3% | 31.3 | 69 | 90 | 30 |
The elastic and flexible PU material (85A~90A) is particularly suitable for lead-in conveyors and vertical shafts.
